Flexible reinforcing arrangements

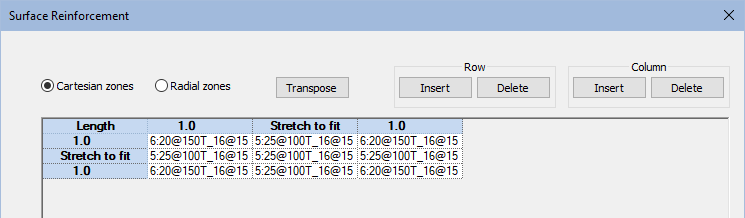

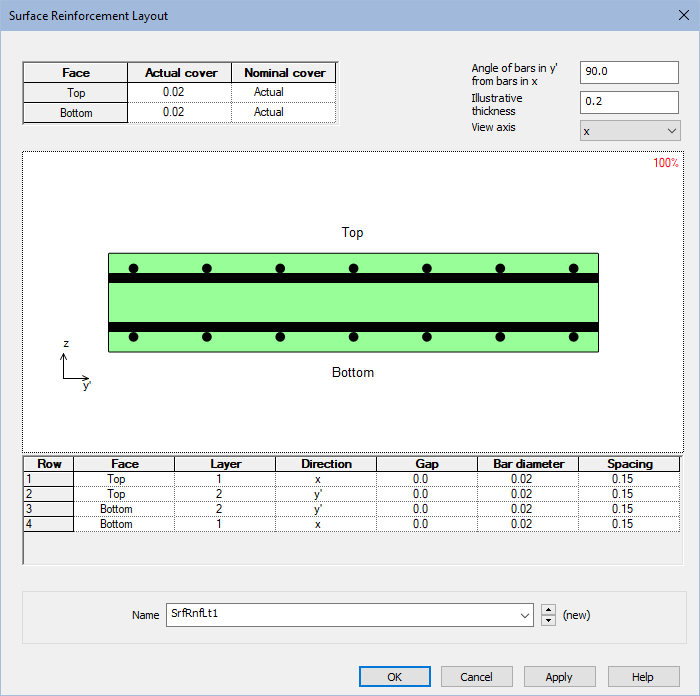

Define multiple reinforcement arrangements for top and bottom (or near and far-face) layers for use in different regions of your model.

Flexible Layout Management

Assign your reinforcement attributes directly to the surfaces representing slabs or walls.

• Single Layout: Quickly apply a consistent reinforcement pattern across an entire surface.
• Multiple Layouts and Zones: Easily define and manage multiple reinforcement zones for more advanced, localized reinforcement configurations.

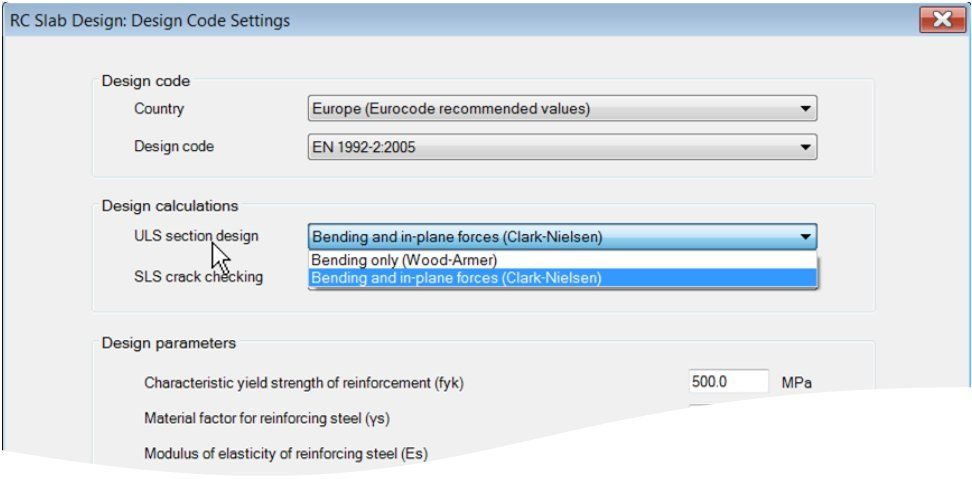

Combine with RC Slab/Wall Design attributes to perform comprehensive reinforced concrete design calculations.

Visualise

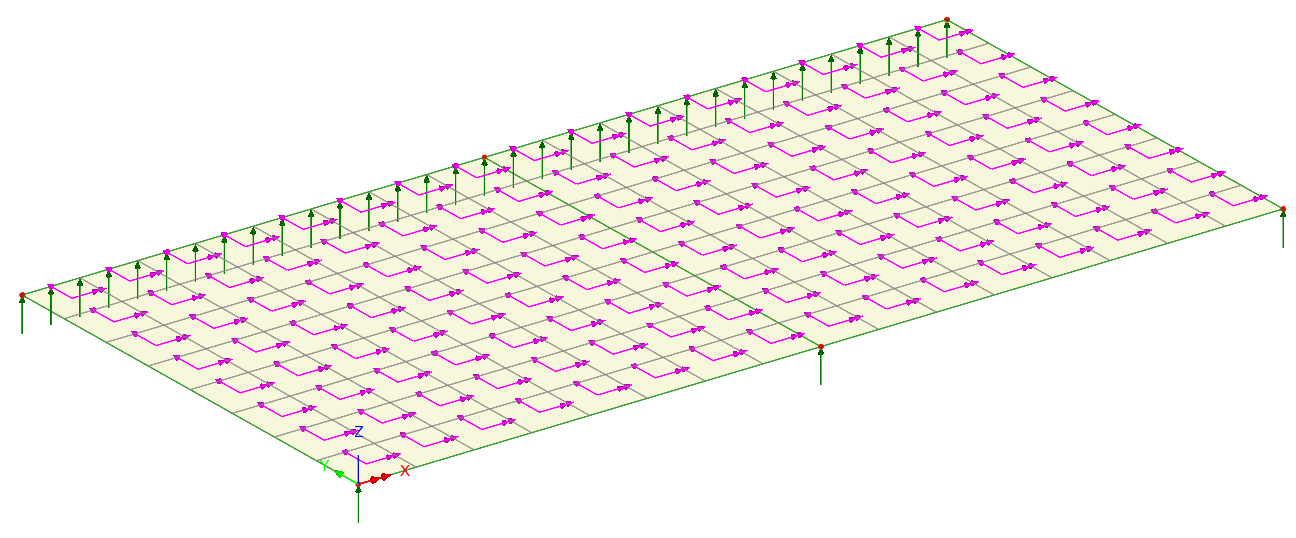

Visualise reinforcement directions in both the x and y axes for a clearer understanding of layout orientation.

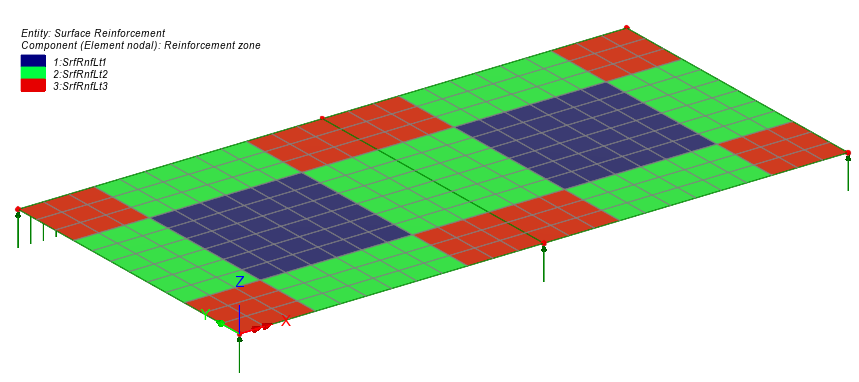

Need to check reinforcement zones? Each defined layout or zone is displayed in a unique colour, complete with a matching contour key, for easy interpretation and review.

Choose your results

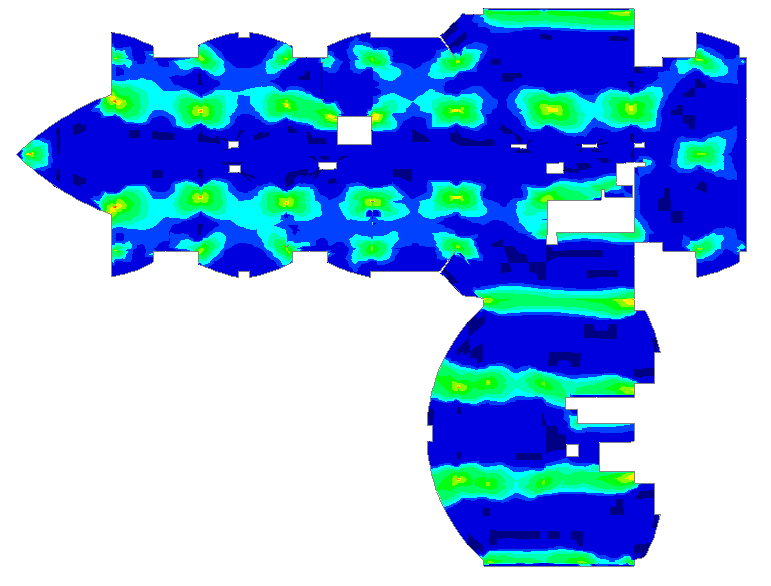

Plot contours and values that indicate flexural reinforcement requirements at Ultimate Limit State (ULS).

Calculate design crack widths at Serviceability Limit State (SLS) for those design codes that support this.

Detailed rendered calculations referencing clauses from design codes are available for all checks made for all design codes.

Report, revise, repeat

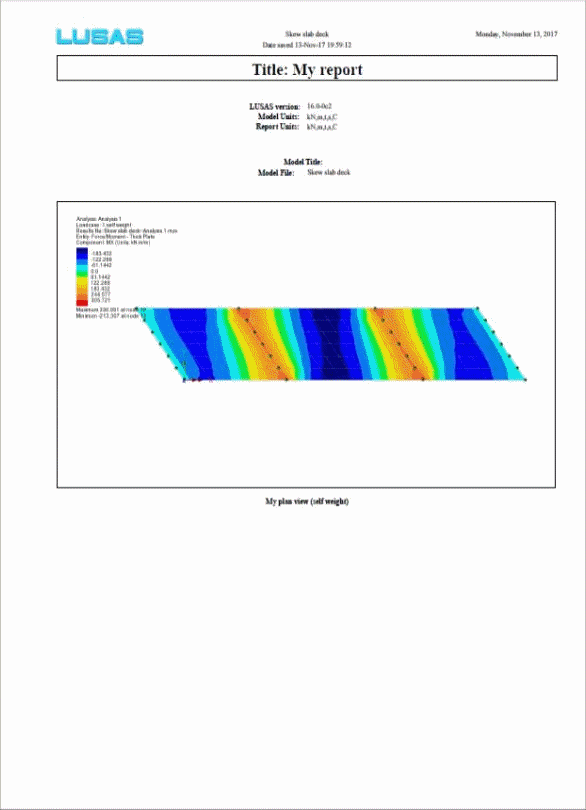

Create design reports individually or append them to the report for the whole model.

Mix summary reports for the whole structure with detailed reports for selected regions.

Create templates to speed reproduction of similar content.
